272BC IC SMD Dual OPERATIONAL AMPLIFIERS. || TLC272BC IC SMD Price

The TLC272 and TLC277 precision dual operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching those of general-purpose BiFET devices. These devices use Texas Instruments silicongate LinCMOS technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes. ElectricsMart

Features :

• Trimmed Offset Voltage: TLC277 . . . 500 µV Max at 25°C, VDD = 5 V
• Input Offset Voltage Drift ...Typically 0.1 µV/Month, Including the First 30 Days
• Wide Range of Supply Voltages Over Specified Temperature Range: 0°C to 70°C . . . 3 V to 16 V –40°C to 85°C . . . 4 V to 16 V –55°C to 125°C . . . 4 V to 16 V
• Single-Supply Operation
• Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix types)
• Low Noise ...Typically 25 nV/√Hz at f = 1 kHz

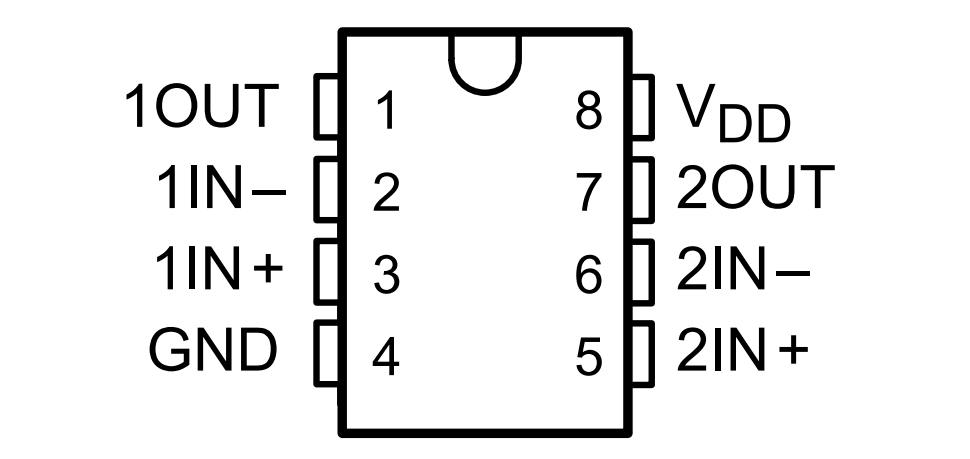

Pin configuration :

Download 272BC IC Datasheet PDF
