BA159 Diode Fast Switching Rectifier. BA159 Diode Price.

For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication.

FEATURES :

• Fast switching for high efficiency
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Case: DO-41

MAXIMUM RATINGS :

• Maximum repetitive peak reverse voltage: 1000V
• Maximum RMS voltage: 700V
• Maximum DC blocking voltage: 1000V
• Maximum average forward rectified current: 1A
• Maximum operation junction temperature: -65 to +125 °C
• Parts Number: BA158-E3/73

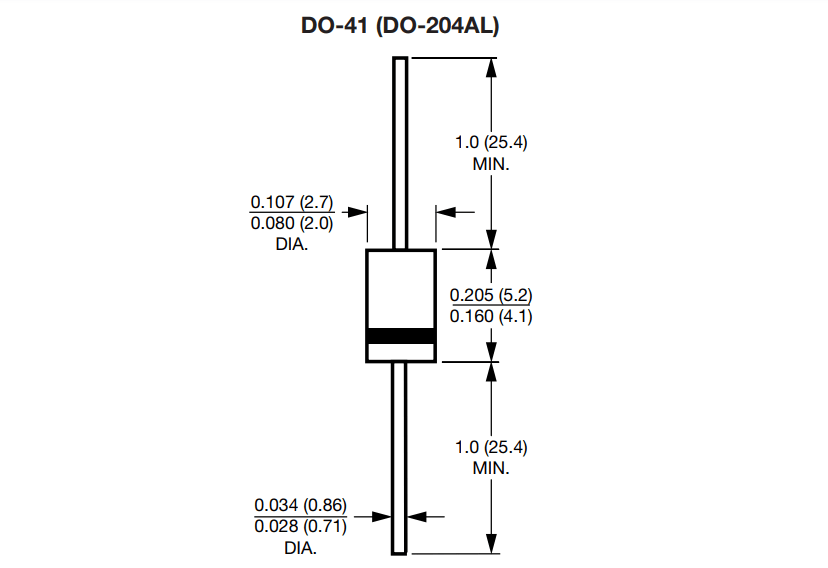

BA159 Diode Pin Diagram :

Download BA159 Diode Datasheet PDF.
